Understanding Neck Finishes
A bottle's neck finish may be small, but it plays a very important role in creating a functional package.
The neck finish helps determine which caps, pumps, sprayers, and other closures can be used with a bottle or jar.
You'll often see specifications such as 24-410, 28-400, and 38-400. These numbers may look confusing at first, but the basic concept is simple.
A neck finish is the designed upper portion of a bottle or jar that interfaces with a closure.
It includes important features such as the opening, threads or fastening features, and sealing surface.
Its dimensions and design must work with the selected closure.
The neck finish describes how the bottle and closure are intended to connect. It is not the bottle's overall size or capacity.
What Does 24-410 Mean?
A common neck finish designation uses two numbers separated by a hyphen.
In a 24-410 neck finish, the 24 identifies the nominal outside neck-thread diameter in millimeters. The 410 identifies the thread or finish style series.
First Number: 24
The first number identifies the nominal outside diameter of the neck finish in millimeters.
In this example, 24 means approximately 24 millimeters.
It does not describe the bottle's capacity or its inside opening diameter.
Second Number: 410
The second number identifies the thread or neck finish style series.
It helps distinguish one finish design from another.
A 400 finish and a 410 finish are not automatically interchangeable.
Complete Specification
Both numbers are needed when identifying a neck finish.
Simply knowing that a bottle has a 24 mm or 28 mm neck is not enough to select a closure.
Common Neck Finish Examples
24-410
Nominal 24 mm neck diameter with a 410 finish series.
One example found in many personal care and dispensing packaging applications.
28-400
Nominal 28 mm neck diameter with a 400 finish series.
Used with appropriately designed closures in a variety of applications.
38-400
Nominal 38 mm neck diameter with a 400 finish series.
Offers a larger nominal neck size than 24 mm or 28 mm finishes.
Consider a 24-400 bottle and a 24-410 bottle.
Both have a nominal 24 mm neck-thread diameter, but their finish specifications differ.
Do not assume that a closure designed for one will work with the other.
Understanding the Parts of a Neck Finish
In Lesson 2, you learned the basic anatomy of a bottle. Let's focus on the features near the bottle opening.

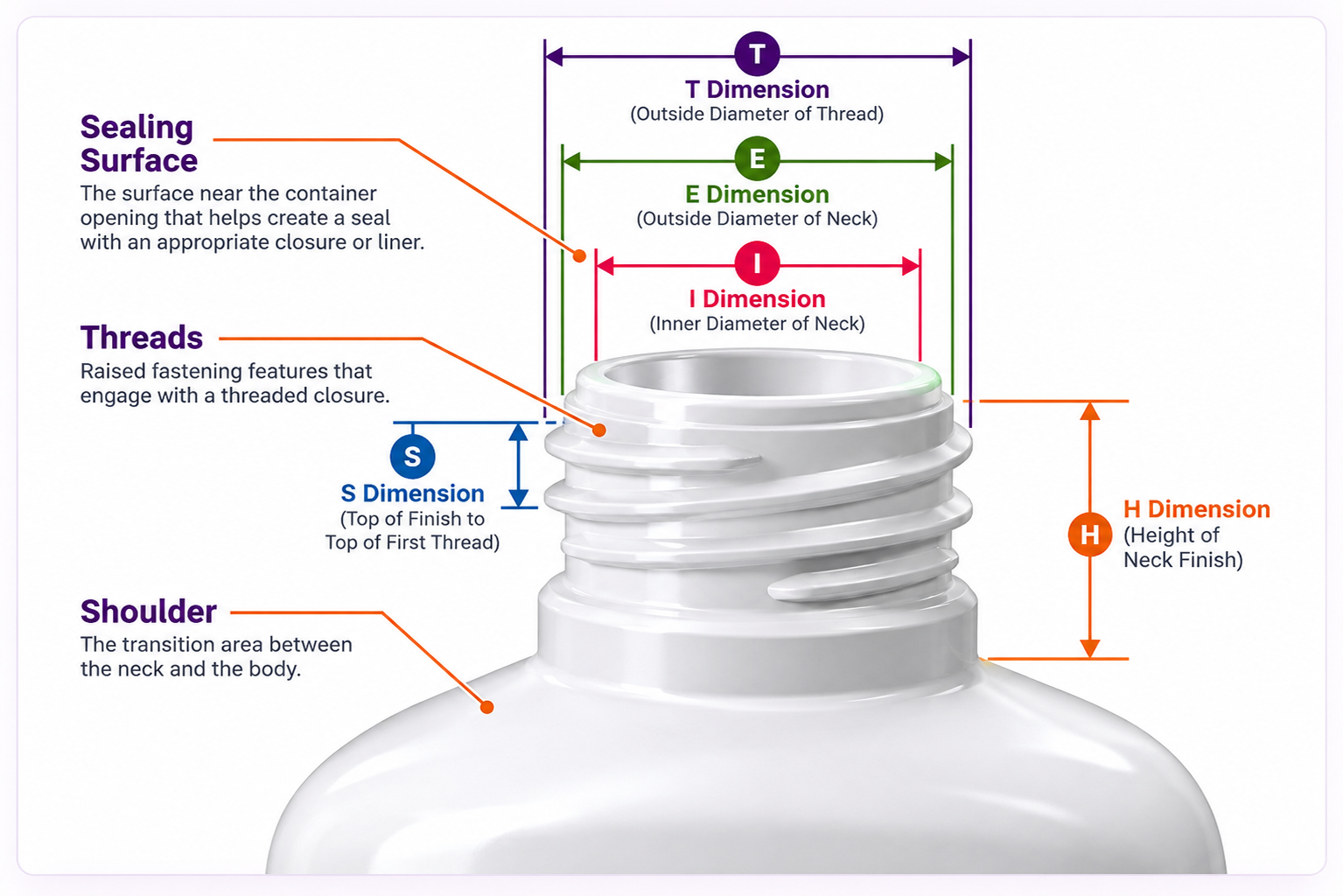

Standard neck finish measurements: T (thread outside diameter), E (neck outside diameter), I (inside diameter), S (distance from the top of the finish to the first thread), and H (neck finish height). Actual dimensions vary by bottle design and neck finish specification.
Technical drawings may show neck dimensions identified by letters such as T, E, I, H, and S.
These help manufacturers and packaging specialists verify closure fit.
For now, the important thing is knowing that a neck finish has specific dimensions beyond its printed designation.
Why Must the Neck Finish Match the Closure?
The correct neck finish helps a closure attach properly and perform its intended function.
However, matching the neck finish designation is only the starting point. Other features must also be compatible.
Thread Engagement
The closure threads must properly engage with the container's neck finish.
Sealing Performance
The cap, liner, or sealing mechanism must create the intended seal.
Application Requirements
Pumps, sprayers, child-resistant closures, and other systems have additional functional requirements.
No. A matching nominal neck finish designation is an important first check, but it does not by itself guarantee a leak-free or fully functional bottle-and-closure assembly.
Actual dimensions, tolerances, liner design, sealing method, application torque, product compatibility, and other features may affect performance.
Samples and appropriate fit and performance testing should be used to verify the combination.
What Can Happen When Components Don't Match?
- The cap may not thread on properly.
- The closure may sit too high or too low.
- The seal may not function correctly.
- The finished package may leak.
- A pump or sprayer may not perform as intended.
These are possible warning signs, not proof of a specific root cause.
A closure described only as "28 mm" should not automatically be selected for every bottle with a 28 mm neck.
The complete finish designation, such as 28-400 or 28-410, must be considered.
Real-World Packaging Examples
Here are situations where understanding neck finishes helps clarify packaging needs.
Example 1: A New Lotion Pump
A customer has a bottle with a 24-410 neck finish and wants to use a lotion pump.
You would first look for a pump designed for the same neck finish.
Next, confirm the pump's fit, sealing performance, dip tube requirements, and compatibility with the lotion.
The lesson: Matching 24-410 is an important starting point, not the final approval.
Example 2: Same Diameter, Different Finish
A customer has a 28-400 bottle and finds a cap described as 28-410.
Both use a nominal 28 mm diameter, but they have different finish specifications.
The cap should not be assumed compatible based only on diameter.
Example 3: A Customer Doesn't Know the Finish
A customer sends a bottle photograph and asks for a matching cap.
Useful information to request includes:
- The bottle's existing specifications or technical drawing.
- The neck finish, if known.
- A sample of the existing bottle.
- A sample or description of the desired closure.
- The product and its dispensing requirements.
A photograph can be helpful, but visual appearance alone generally cannot establish a complete neck finish specification.
Four Good Questions to Ask
What Neck Finish?
Do you have the complete specification or bottle drawing?
Which Closure?
Do you need a screw cap, pump, sprayer, flip-top, or another type?
What Product?
What formulation and dispensing requirements must the package meet?
Has It Been Tested?
Has the bottle and closure combination been verified for the application?
What You've Learned
Neck finishes are essential when selecting compatible bottles and closures.
Six Things to Remember
- A neck finish is the portion of a container designed to interface with a closure.
- In 24-410, the 24 describes the nominal neck-thread diameter in millimeters.
- The 410 identifies the thread or finish style series.
- A 28-400 and a 28-410 are different neck finishes.
- Matching nominal designations alone does not guarantee sealing or functional performance.
- Proper fit, compatibility, and package performance must be verified.
In Lesson 10, we'll explore the different types of caps and closures used in rigid packaging.
You'll become familiar with screw caps, flip-top caps, child-resistant closures, lotion pumps, fine-mist sprayers, trigger sprayers, foamers, and droppers.
